ASTM Reference Calibration Weight Sets
Reference Calibration Weight Sets and Mass Standards Adjusted to Troemner UltraClass Tolerances

Weight Set ASTM 2kg-1g UC Accrd TR

Calibration Certificate ISO/IEC 17025 Accredited Certificate
ASTM Class UltraClass;Troemner UltraClass
Weight Set Range 2 kg - 1 g
Item Number: 30390159
Overview
ASTM Reference Calibration Weight Sets
Applications
Use as a primary reference for calibrating other mass standards and use for traceability between national mass standards and ASTM Class 1 weights and lower. This class is appropriate for calibrating high-precision balances with readability as low as 0.01 mg.
Construction
Two-piece
Design Features
Weights 50 kg through 1 g are cylindrical with handling knob. Weights 500 mg and below are flat with one end turned up for easy handling.
Specifications
Calibration Certificate ISO/IEC 17025 Accredited Certificate
ASTM Class UltraClass;Troemner UltraClass
Weight Set Range 2 kg - 1 g
Set Capacity 4 kg
Set Total Pieces 14

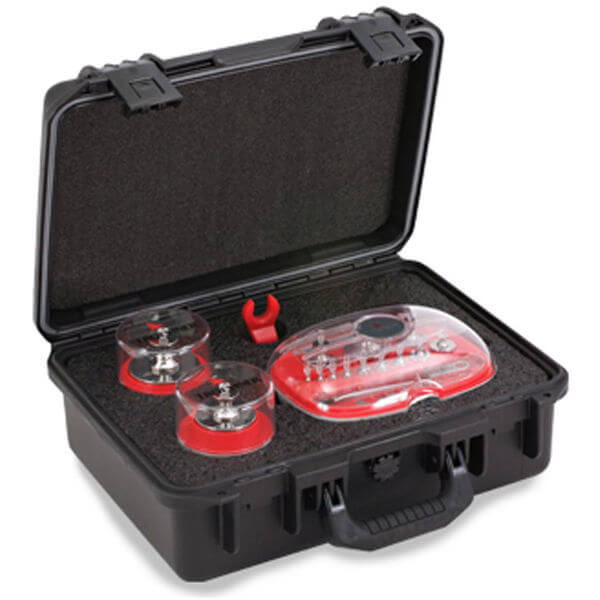

Protective Case Included
Construction Two-piece
Density at 20°C Below 2 kg are 8.03 g/cm3;2 kg and above are 7.95 g/cm3
Dimensions in Case 6.6 in x 12.7 in x 16.2 in (16.764 cm x 32.258 cm x 41.148 cm) (LxHxW)
Set Contents 10 g;(2) 20 g;100 g;(2) 2 g;(2) 200 g;1 g;50 g;5 g;1 kg;2 kg;500 g
Weight Material ≥2 kg are 316 Stainless Steel;Below 2 kg are Troemner Alloy;Weights 2 kg and above are 316 Stainless Steel. Weights below 2 kg are Troemner Alloy 8.
Wgt Origin (USA) USA
