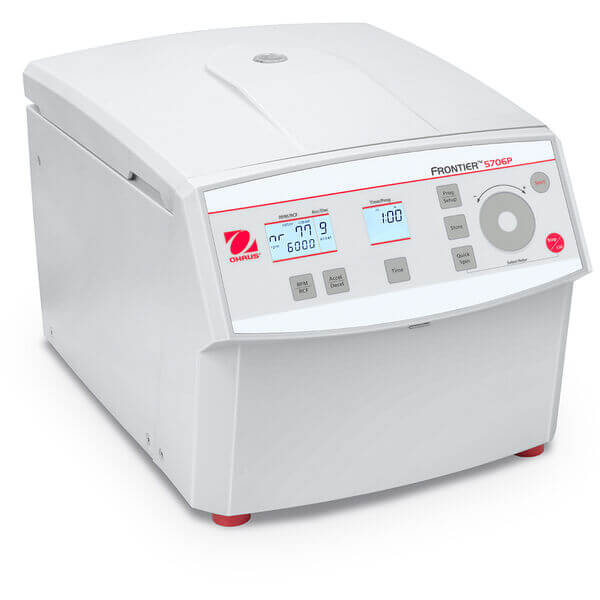

Frontier™ 5000 Series Multi
Reliable and Compact Multi-Function Centrifuges Ideal for General Low Throughput Lab Applications

FC5706P

Speed Range 200 rpm – 6,000 rpm
Maximum Relative Centrifuge Force (x g) 4,427 g
Maximum Capacity(Rotor) 6 x 50 ml
Item Number: 31060778
Overview
Frontier 5000 Multi Centrifuges are reliable compact low-speed general purpose centrifuges ideal for processing a small number of blood tubes as well as urine tubes. The standard rotor options can process both round and conical bottom tubes (including common blood tubes) and can also be adapted easily with accessories to process smaller tubes. Designed with convenient operation in mind, the Multi Centrifuges feature an intuitive interface. The compact profile helps to save valuable bench space in labs.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
Easy installation design
Specifications
Speed Range 200 rpm – 6,000 rpm
Maximum Relative Centrifuge Force (x g) 4,427 g
Maximum Capacity(Rotor) 6 x 50 ml
Program memories 99
Acceleration Gear 10
Deceleration Gear 10
Dimensions 18.3 in x 10.7 in x 12.7 in (427 mm x 271 mm x 370 mm) (LxHxW)
Display LCD with backlight
Lid lock Mechanical
Net Weight 31.3 lb (14.2 kg)
Noise Level ≤ 56 ± 2 dB(A)
Power AC Power (Included)
Power Consumption 70 W
Pre-cool time Not applicable
Rotor Compatibility Angle 12 x 15 ml RB/FA ID;Swing out 6 x 5 ml RB;Angle 6 x 50 ml RB/FA;Swing out 4 x 10 ml;Angle 18 x 1.5/2.0 ml
Rotor Recognition Method Manual
Running Time Continous;10 sec to 99 h 59 min 59 sec;Quickspin
Safety Certification CE;FCC
Working Environment 41°F – 95°F, 80%RH, non-condensing (5°C – 35°C, 80%RH, non-condensing)
Accessories

Item Number

30130877

Description

Rotor Angle 12x15ml RB/FA

Item Number

83041499

Description

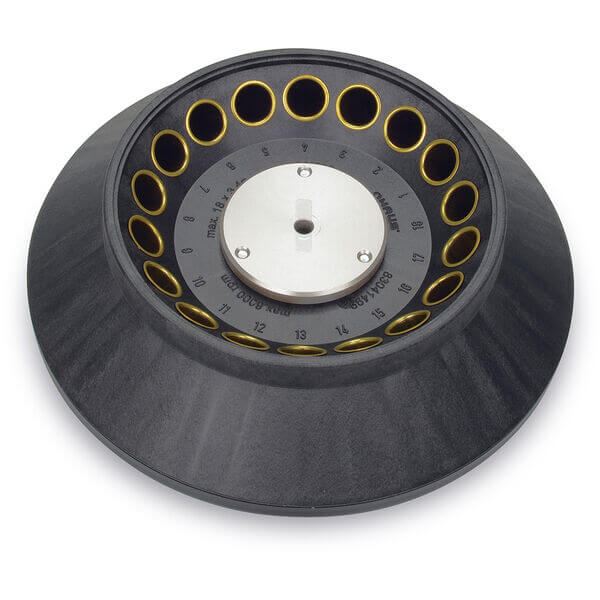

Rotor Angle 18x1.5/2.0ml

Item Number

30130878

Description

Rotor Angle 6x50ml RB/FA

Item Number

31013397

Description

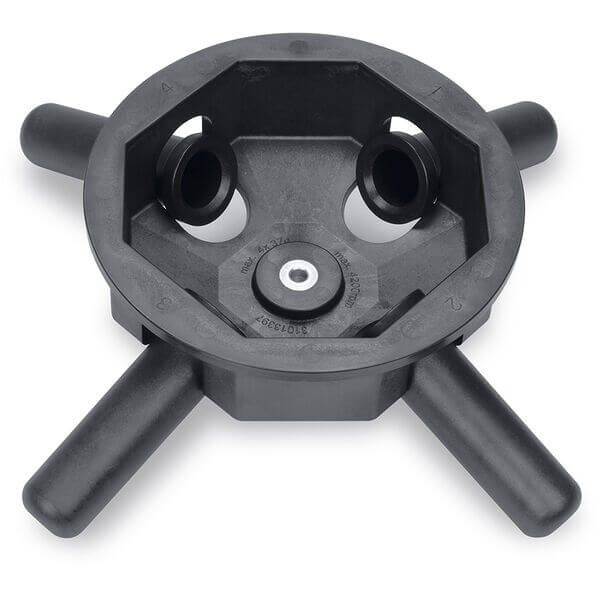

Rotor Swing out 4x10ml

Item Number

30130880

Description

Rotor Swing out 6x5ml RB
