MB32

Maximum Capacity	90 g
Readability Moisture Content	1 mg/0.01%
Pan Size	3.5 in (90 mm)
Item Number:	30971928

Request a Quote ADD TO QUOTE LIST

View All MB32 Models

Overview
Specs
Accessories
Documents

Overview

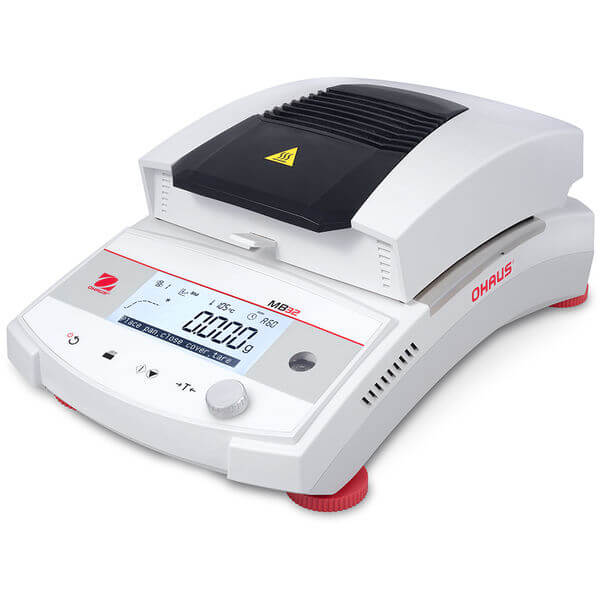

The new OHAUS MB32 features a redesigned housing with stronger material, innovative carbon fiber heating technology and an upgraded load cell for enhanced durability and performance. The easy-to-use MB32 is the perfect choice for routine moisture testing.

Applications

Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing

Display

4" LCD with 2nd line display

Operation

Internal power supply with power cord (included)

Communication

RS232, USB device

Construction

Carbon fiber heat source, PBT housing, Die casting aluminum base, metal pan support, metal pan handler, in use cover

Design Features

Five shut-off criteria (manual, timed, Auto, A30, A90), two drying profiles (standard and fast), storage up to two methods, 40-180℃ heating range, multiple operational languages

Specifications

Maximum Capacity	90 g
Readability Moisture Content	1 mg/0.01%
Pan Size	3.5 in (90 mm)
Heater Type	Carbon fiber
Communication	USB device;RS232
Recommended Moisture Content MC%	0.5 % - 100 %
Adjustment	Temperature Adjustment - Mechanical (100℃, 160℃);Weight Adjustment - External (50g)
Dimensions	13.9 in x 5.4 in x 8.3 in (352 mm x 138 mm x 210 mm) (LxHxW)
Display	4" LCD with 2nd line display
Display Results	RG%;Temperature;DC%;Time;Method No.;MC%;Weight
Heating Profiles	Standard;Fast
In-Use Cover	Included
Moisture Range	0.01 % – 100 %
Net Weight	9.5 lb (4.3 kg)
Operating Range (Temp.)	10 °C – 40 °C
Operation Instructions	On-screen Instruction;Progress Indicator
Repeatability	0.02% (10g sample);0.15% (3g sample)
Shut-Off Criteria	3 Auto;Timed;Manual
Temperature Range	40 °C – 180 °C
Test Library	2
