View All Products   |   Laboratory Vortex Mixers   /   Microplate Vortex Mixers   /   VXMPDG
Enlarge
Microplate Vortex Mixers
The Ideal Solution for Dependable Vortex Mixing of Microplates

VXMPDG

Control Digital
Duty Rating Continuous
Orbit 0.1 in (3.5 mm)
Item Number: 30392150
Request a Quote ADD TO QUOTE LIST
View All Microplate Vortex Mixers Models
Overview
OHAUS Microplate Vortex Mixers are perfect for mixing microplates throughout the speed range. All models are designed for continuous-duty use in the lab. Digital models offer a timer and exact speed control for applications that demand repeatable results and non-digital variable speed models are an economical alternative. The high-speed and small orbit of these mixers make them optimal for effectively mixing microplates.
Applications
ELISA Assays, PCR Preparations, Digestions, Cell Disruptions
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cycoloy
Design Features
Microplate adapter and cup head (included)
Specifications
Control Digital
Duty Rating Continuous
Orbit 0.1 in (3.5 mm)
Speed Range On Mode, 300 rpm – 2500 rpm;Touch Mode, 300 rpm – 3500 rpm
Capacity 2 Microplates
Timer 1 second - 9999 minutes
Dimensions 10.5 in x 4.5 in x 5.4 in (26.7 cm x 11.4 cm x 13.7 cm) (LxHxW)
Net Weight 11.7 lb (5.3 kg)
Power 230V, 0.13A, 50/60Hz
Power Consumption 30 W
Safety Certification CE;TUV
Working Environment 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
Accessories

Item Number

30400210

Description

Cup Head, VXHD and VXMP Vortex Mixers

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400213

Description

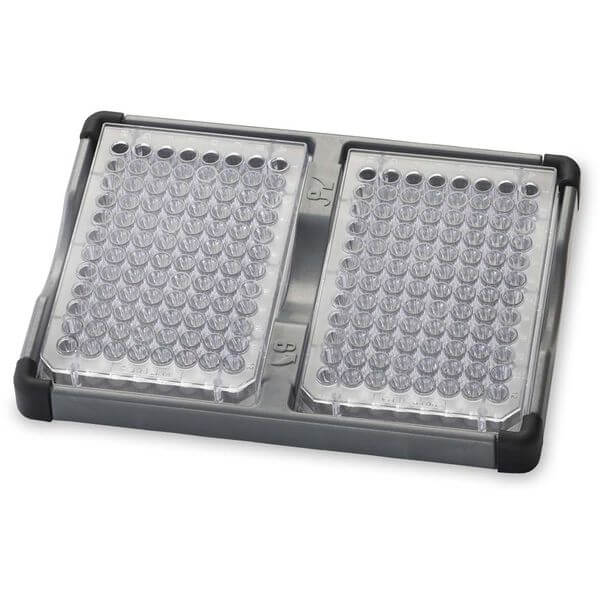

Double Microplate Holder

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400215

Description

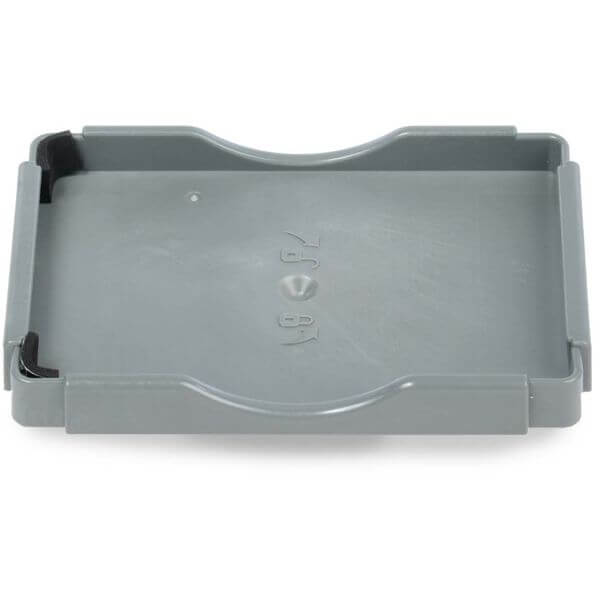

Single Microplate Holder

Request a Quote Add To Quote List Remove From Quote List
